Model:RDF(Flange Type)、RDT(Thread Type)

Flange Type

Product accent:
  • The gate is designed for opening status, which will not influence the water supply function under unstable inlet pressure condition.
  • When the outlet pressure responds directly to the pressure control chamber and adjust the setting pressure, it responses quickly and adjust the pressure accurately.

Flange Type-illustration
  1. Upper Cover:Bronze
  2. Body:Bronze / SS304
  3. U-ring:NBR
  4. Piston:Bronze
  5. Sealing Spacer:NBR
  6. Sealing Washer:Brass
  7. Shaft Guiding Seat:Bronze
  8. Center Shaft:Brass
  9. Diaphragm Washer :SS 304
  10. Diaphragm :EPDM
  11. Fixed Bolt:SS 304
  12. Fixed Bolt:SS 304
  13. Spring:Spring Steel
  14. Lower Cover:Ductile Iron
  15. Adjusting Stem:SS 304
  • Pressure Adjusting Range:
    1 kgf/cm2 ∼5 kgf/cm2
    3 kgf/cm2 ∼8 kgf/cm2
    (special order is needed for other range)
  • Valve Body Testing Pressure:21kgf/cm2
  • Maximum Applied Pressure:
    12 kgf/cm2
  • Pressure needed from fully-closed gate to fully opened gate: 1 kgf/cm2
    (1 kgf/cm2 =14.2 psi)
  • Applied Temperature: -15℃ ~ 80℃
  • Applied Fluid: Fresh water
Item No Flange Type H L CV
RDT-50 2" 150 190 17
RDT-65 2-1/2" 165 210 28
RDT-80 3" 200 225 60
RDT-100 4" 220 250 80

尺寸單位:mm


Thread Type-illustration

  1. Gauge:Iron / SS304
  2. Upper Cover:Bronze / SS304
  3. O-ring:NBR
  4. Body:Bronze / SS304
  5. Piston :Brass /  SS304
  6. Sealing:NBR
  7. Shaft :Brass / SS304
  8. Diaphragm:CR橡膠
  9. Fixed Bolt:SS304
  10. Diaphragm Washer:SS304
  11. Spring:Spring Steel
  12. Spring Cover:Polyamide 66
  13. Spring Washer:Electroplated Iron
  14. Adjusting Bolt:Brass
  • Applied Fluid: Fresh water
  • Pressure Adjusting Range:
    1 kgf/cm2 ∼3 kgf/cm2
    2 kgf/cm2 ∼5 kgf/cm2
    4 kgf/cm2 ∼9 kgf/cm2
  • Valve Body Testing Pressure:21kgf/cm2:21kgf/cm2
  • Maximum Applied Pressure: :12kgf/cm2
  • Applied Temperature::-15°C∼80°C
  • 壓力錶為選購配件

Item No Thread Type H L CV
RDT-15 1/2" 70 60 2.5
RDT-20 3/4" 70 70 4.0
RDT-25 1" 80 80 6.5
RDT-32 1 1/4" 85 90 10.0
RDT-40 1 1/2" 110 110 13.0
RDT-50 2" 115 115 17.0
RDT-65 2-1/2" 180 150 28.0

★2-1/2僅生產鉋金銅材質

尺寸單位:mm

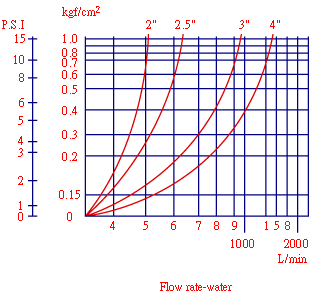

Flow Chart of Direct-Activated Pressure Reducing Valve
