Model：BFF(Flange Type)、BTF(Thread Type)

Product accent：
Float valve uses a sub-valve (floating ball switch) to control the main valve. When the water level elevates to the full water level defined by sub-valve (floating ball switch), the sub-valve (floating ball switch) closes and back pressure inside the main valve accumulates rapidly, which pushes the piston valve reversibly to close. By this mechanism, the float valve can thus control the water level. In order to save space inside the pool and for easy maintenance, it is recommended to install the float valve outside the pool.

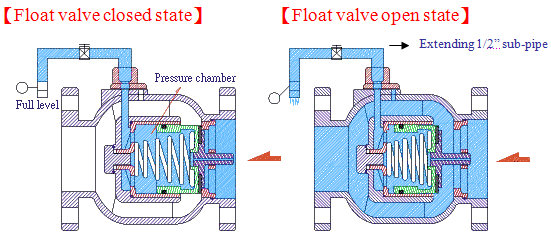

◎At full water level, pressure accumulates in the pressure chamber and pushes the gate reversibly.		 ◎At low water level, pressure in pressure chamber dissipates, and water pressure inside the pipe pushes the gate open.
  • 使用場合：一般淡水流體
  • 使用溫度：-15℃∼80℃
  • 閥體測試壓力 / 最高使用壓力
              鑄鐵： 21 kgf/cm2 / 12 kgf/cm2
          鉋金銅： 21 kgf/cm2 / 12 kgf/cm2
      石墨鑄鐵： 32 kgf/cm2 / 20 kgf/cm2
          不銹鋼： 32 kgf/cm2 / 20 kgf/cm2
  • The working pressure should be greater than 0.3 kgf/cm2please check the pressure before installation.
  • Please remove impurities or metal dusts inside the pipe thoroughly. If possible, please add filter to prevent pipe blocking.
  • Avoid upside-down installation under insufficient flow.
  • Please uses high pressure float ball switch.

Valve Size


Thread Type Item No L A CV
 1-1/2" 40 120 80 19
2" 50 200 90 37
Flange Type Item No L A CV
2" 50 190 100 37
2-1/2" 65 212 105 85
3" 80 225 120 110
4" 100 250 130 150
5" 125 284 150 230
6" 150 310 180 450
8" 200 420 205 580
10" 250 470 250 910
12" 300 535 280 1300
14" 350 600 320 1800
16" 法蘭式 600 325 2300

尺寸單位：mm

★18"以上尺寸規格另行索取
BTF(Thread Type)   BFF(Flange Type)

溝槽式-定水位閥尺寸
出水口徑 接續型式 L A 重量 CV值
3" 牙口式 -- -- -- --
4" 牙口式 -- -- -- --
6" 牙口式 -- -- -- --
